Movement

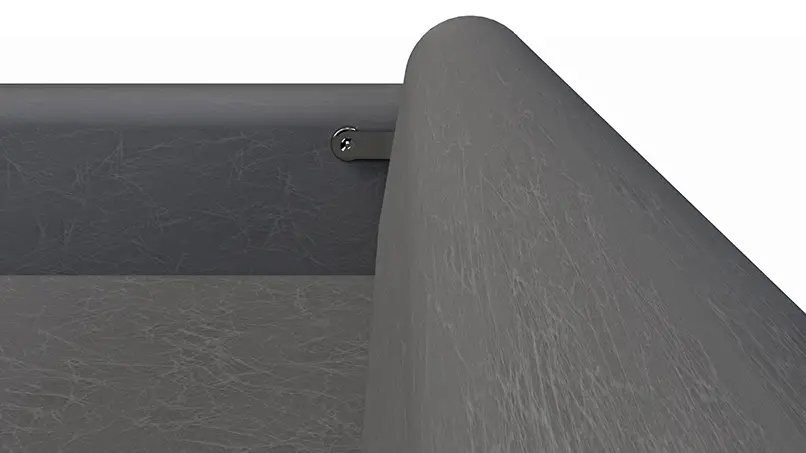

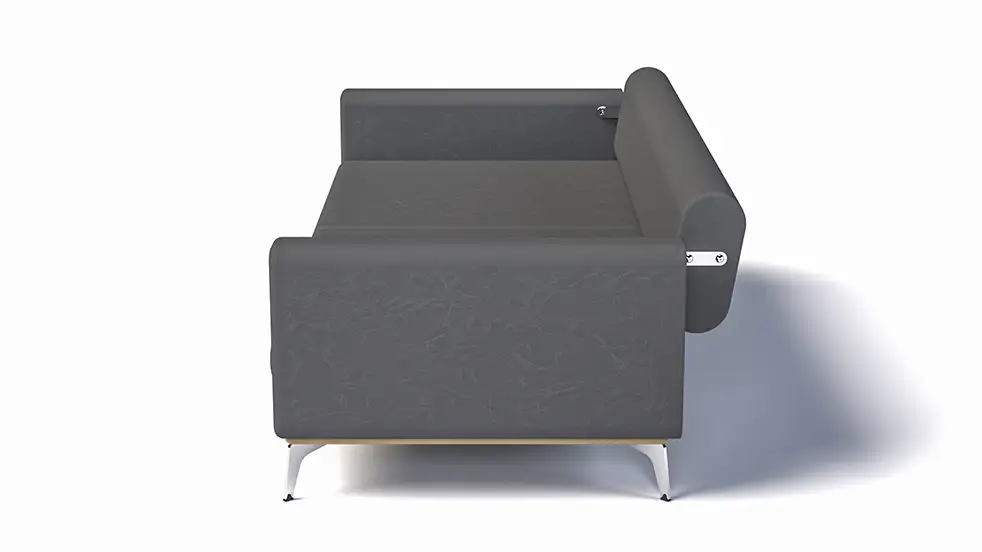

The back movement provides transitions between standard seating, deep seating and a single-bed position in a three-seat sofa.
Back to Products

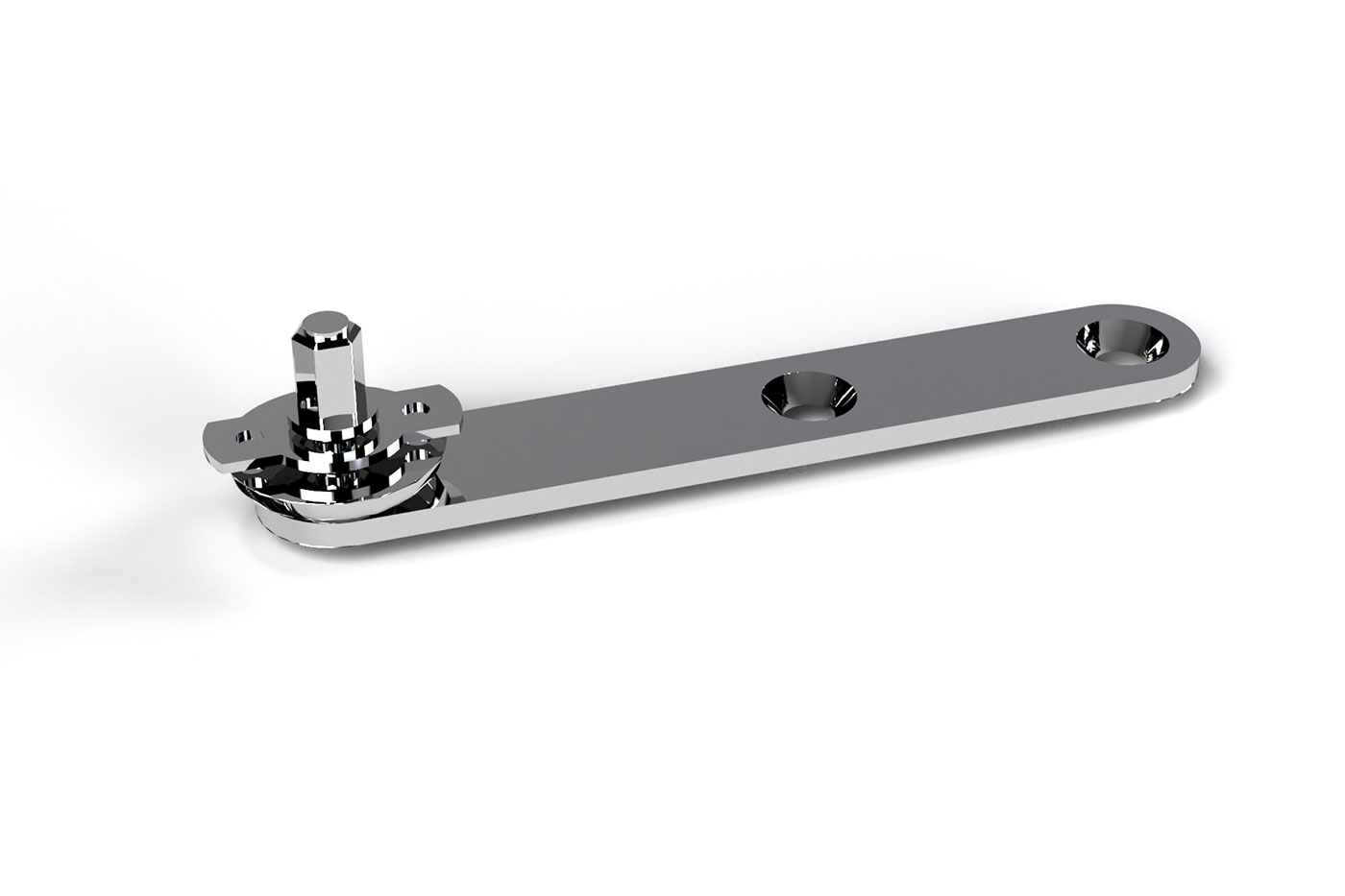

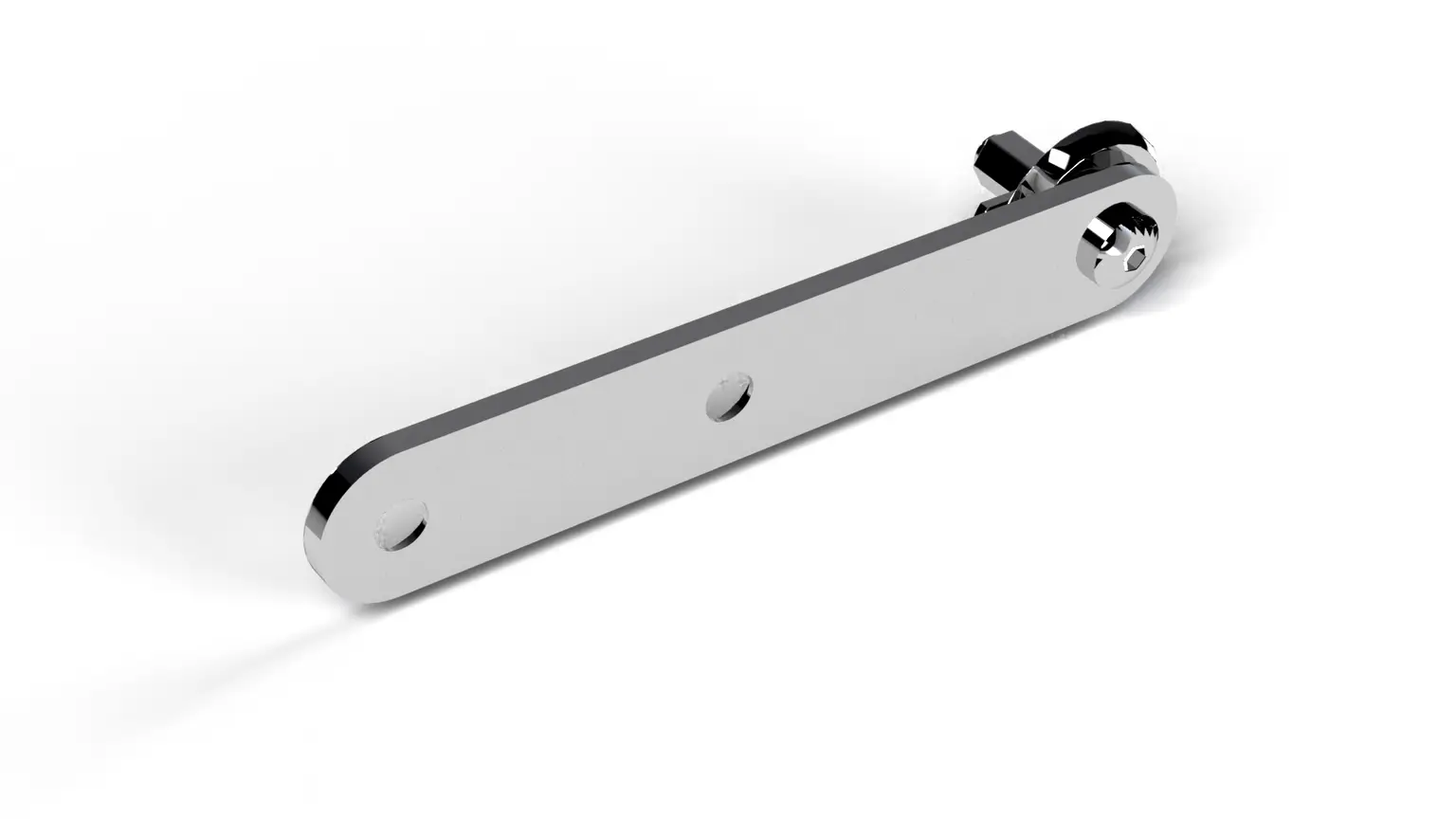

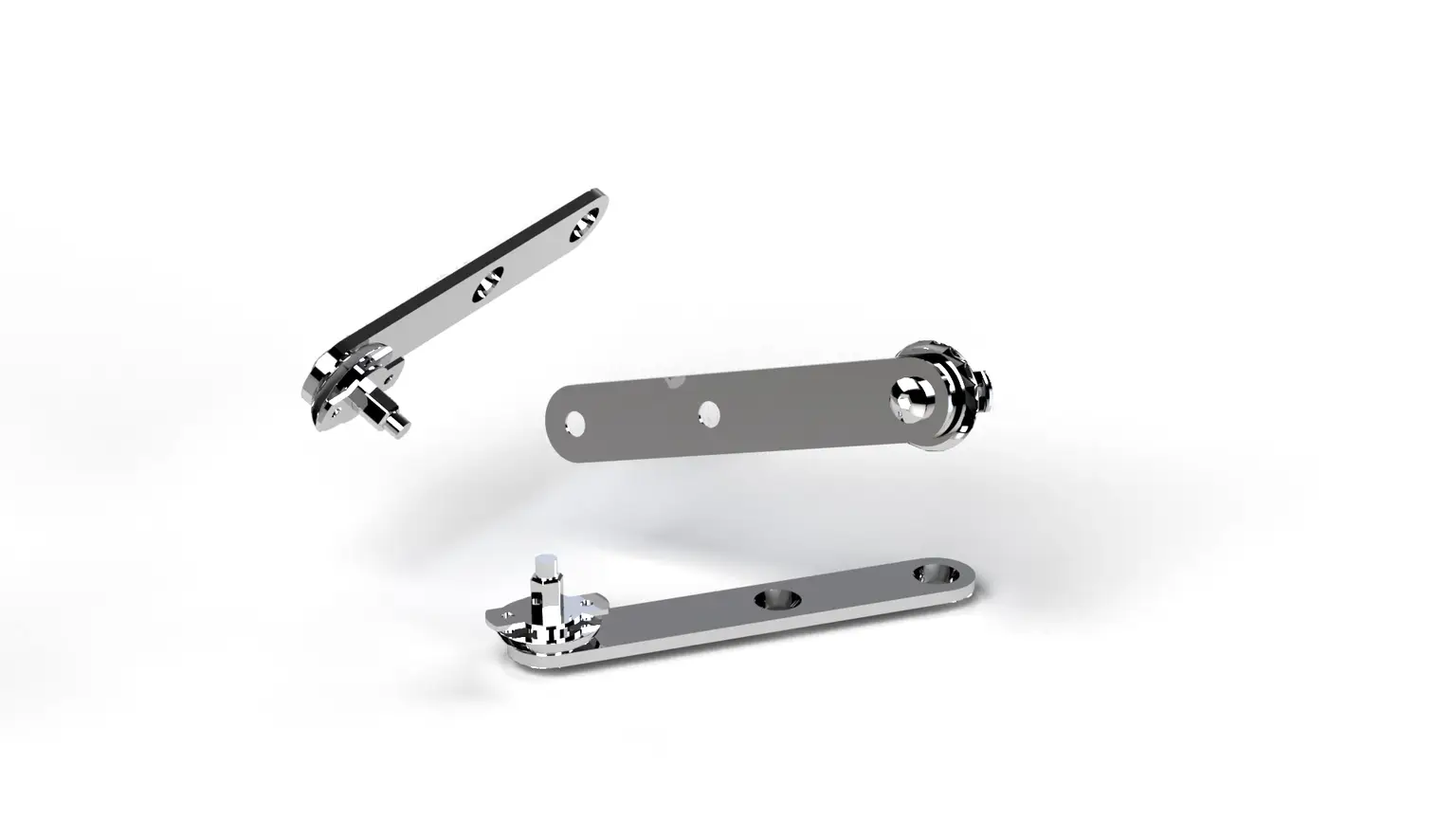

CSS 4
Provides standard seating, deep seating, and a single bed option in three-seat, two-seat, and single-seat modules. Three States of the Sofa: Standard Seating, Deep Seating, Bed. Specially designed screws that do not damage fabric or leather.
Product use
Furniture application
Three-seat, two-seat and single-seat sofa modules with round short- or standard-trim options in plastic or zamak.
Product highlights
- The back mechanism provides standard seating in the first function.
- The practical recline of the back mechanism offers maximum comfort with seating depth and allows for a single bed option.
- Offers the possibility of using fixed or removable back cushions in your designs.
- Provides maximum sales potential with minimal mechanism cost.
- Quick and economical application ease with 40% less screw usage.
Assembly dimensions and references
- Assembly reference
- Use the product technical drawing for mounting holes, connection direction and component position.
Technical Information
Product Code
CSS-4 YUVARLAK
Product Name
CSS 4 Hareketli Sırt Aparatı
Mechanism Size (cm)
-
Bed Size (cm)
-
Variant Options
Round / Short Trim / Zamak
Round form with short trim and zamak surface option.
Round / Standard Trim / Plastic
Round form with standard trim and plastic surface option.
Round / Standard Trim / Zamak
Round form with standard trim and zamak surface option.
Technical PDFs and documents
CSS mechanism comparison
Core movement, variant and assembly differences within the same product family.
| Comparison | CSS 2 | CSS 3 / CSS 3 ECO | CSS 4 | CSS 4 ABS |
|---|---|---|---|---|
| Core movement | Standard + deep seating; single bed in three-seat sofa | Standard + deep seating; single bed in three-seat sofa | Standard + deep seating; single bed in three-seat sofa | Standard + deep seating; single bed in three-seat sofa |
| Variant | Short-trim option | Standard, stop/stepped, eco, eco short trim | Round; short/standard trim; plastic/zamak | Round ABS |
| Assembly feature | Standard application per technical drawing | Standard or stepped application by variant | Structure designed for 40% fewer screws | Single-screw assembly; suitable for knock-down shipment |
