Movement
The back mechanism moves from standard seating to deep seating and provides a single-bed function in three-seat sofa applications.
Back to Products
CSS 2

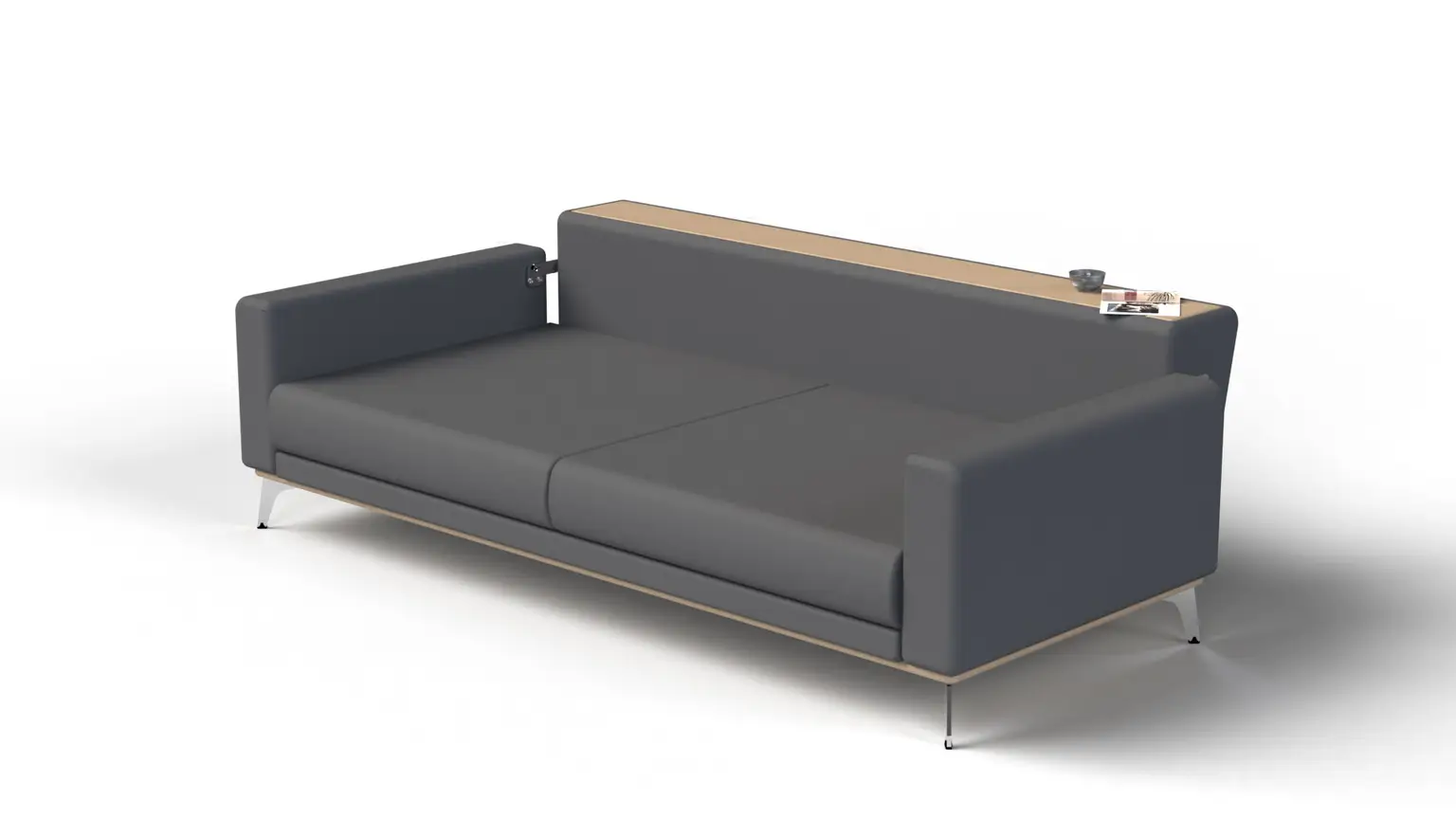

In triple, double, and single modules, besides standard seating, deep seating and a single bed are available for the triple modules. Standard Seating - Deep Seating - Bed.
Product use
Furniture application
Three-seat, two-seat and single-seat sofa modules with fixed or removable back cushions.
Product highlights
- The back mechanism provides a standard seating position in its first function.
- Its practical opening movement increases seating depth for greater comfort and provides a single-bed option.
- Supports both fixed and removable back-cushion applications.
- Provides a cost-efficient mechanism solution for high-volume furniture production.
- Available with a short side-rail option.
Assembly dimensions and references
- Assembly reference
- Use the product technical drawing for mounting holes, connection direction and component position.
Technical Information
Product Code
CSS-2
Product Name
CSS 2
Mechanism Size (cm)
-
Bed Size (cm)
-
Technical PDFs and documents
CSS mechanism comparison
Core movement, variant and assembly differences within the same product family.
| Comparison | CSS 2 | CSS 3 / CSS 3 ECO | CSS 4 | CSS 4 ABS |
|---|---|---|---|---|
| Core movement | Standard + deep seating; single bed in three-seat sofa | Standard + deep seating; single bed in three-seat sofa | Standard + deep seating; single bed in three-seat sofa | Standard + deep seating; single bed in three-seat sofa |
| Variant | Short-trim option | Standard, stop/stepped, eco, eco short trim | Round; short/standard trim; plastic/zamak | Round ABS |
| Assembly feature | Standard application per technical drawing | Standard or stepped application by variant | Structure designed for 40% fewer screws | Single-screw assembly; suitable for knock-down shipment |
Technical guides
Knowledge Center content for this product
CSS Mechanisms
What should be considered when selecting a CSS sofa-bed mechanism?
Seat-bed function, frame compatibility, opening ergonomics and production-line assembly criteria for CSS mechanisms.
CSS MechanismsDifferences between CSS 2, CSS 3 and CSS 4
Shared functions, variants and serial-production selection criteria for CSS back mechanisms.
